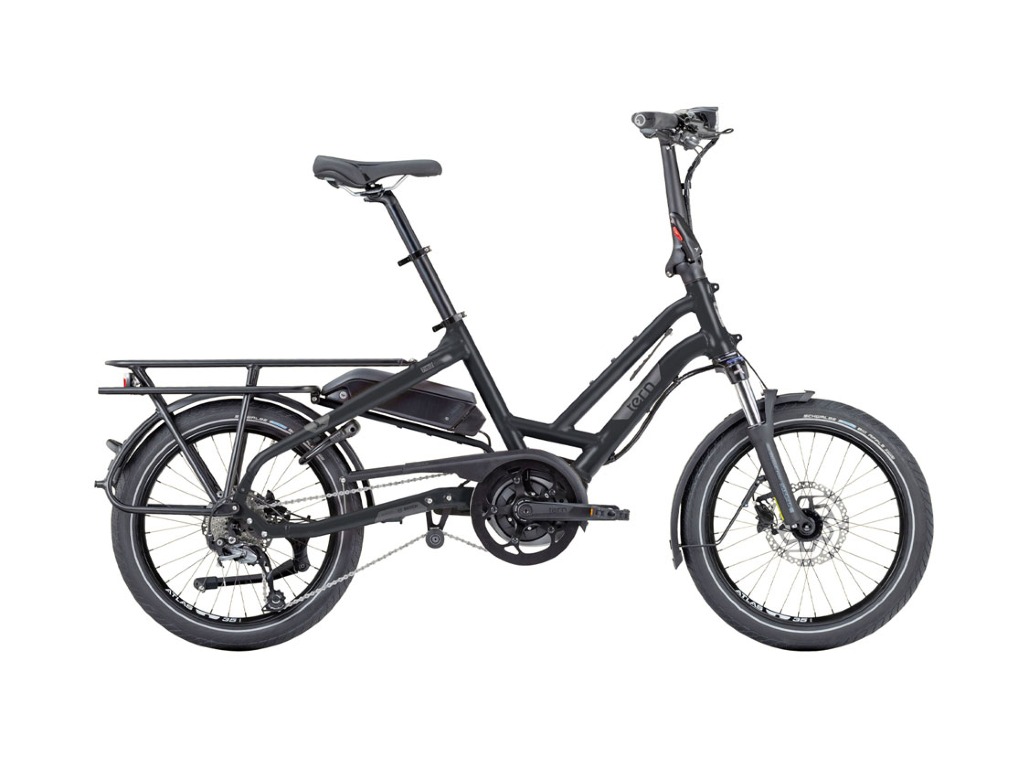

HSD P9 2025年モデルの仕様

SPEEDS:1 x 9

WEIGHT:25.7 kg (56.7 lb)

GEAR INCHES:33" - 97" (2.65 - 7.72 m)

FOLDING SIZE:163 × 40.5 × 86 cm (64.2 × 15.9 × 33.9 in)

FOLDING TIME:5 sec

FRAME SIZES:One size

DISTANCE: SEATPOST TO HANDLEBAR:49 - 59 cm (19.3 - 23.2 in)

DISTANCE: SADDLE TO PEDAL:69 - 105 cm (27.2 - 41.3 in)

SUGGESTED RIDER HEIGHT:150 - 195 cm (59.1 - 76.8 in)

MAX GROSS VEHICLE WEIGHT:170 kg (374.8 lb)

MAX RIDER WEIGHT:120 kg (264.6 lb)

FRAME:Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg

FORK:Suntour custom for Tern, Chromoly steerer, 32 mm stanchions, Thru-axle, EFBE tested for 170 kg

HANDLEPOST:Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm

STEM:Tern Andros (G2), adjustable, forged construction, patented technology

HEADSET:Tern Flux, cartridge bearings, Physis integrated

HANDLEBAR:Tern Sweep, 6061-AL, Tern Andros adapted

GRIPS/BAR TAPE:Ergon

SADDLE:Tern HSD

SEATPOST:Tern Telescope, 34.9/30.9 mm, 2014-AL

SEATPOST CLAMP:Tern Collar, 6061-AL, 2pc

FRONT BRAKE:Shimano, hydraulic disc, 180 mm rotor

REAR BRAKE:Shimano, hydraulic disc, 160 mm rotor

BRAKE LEVERS:Shimano, hydraulic disc

BRAKE CABLE & HOUSING:Shimano, hydraulic disc

FRONT WHEEL:Tern Atlas H, cargo wheel

REAR WHEEL:Tern Atlas H, cargo wheel

FRONT HUB:Novatec, Thru-axle, sealed bearings

REAR HUB:Shimano disc

SPOKES AND NIPPLES:Stainless steel

RIMS:Tern Atlas H, wide 35 mm

TIRES:Schwalbe Big Apple, 55-406, puncture protection, Reflex

SHIFTER(S):Shimano Alivio, 1 x 9 spd, trigger

REAR DERAILLEUR:Shimano Alivio Shadow

CRANKSET:Tern HSD custom

CASSETTE/FREEWHEEL:Shimano 11-32T, 9 spd

BOTTOM BRACKET:Motor integrated

CHAIN:9 spd, DHT for eBike, GST corrosion resistant coating

PEDALS:Urban with non-slip surface

SHIFTER CABLE & HOUSING:Jagwire LEX-SL, slick treatment, alloy ferrules

MOTOR:Bosch Active Line Plus, 36V/250

WBATTERY:Bosch PowerPack 300 Wh

DISPLAY:Bosch Intuvia

RANGE:42 -110 km (26-69 mi)

CHARGER:Bosch Standard Charger

BELL:Aluminum

CHAINGUARD:SKS Chainblade

KICKSTAND:Ursus, rear mount

LUGGAGE SOCKET:Tern Valo Direct, 45 lux/190 lumens

FRONT LIGHT:Tern Valo Direct, 45 lux/190 lumens

REAR LIGHT:Herrmans H-Trace, for eBike

FENDERS:SKS, stainless hardware

RACK(S):Atlas H Rack?, Atlas Rack Mount, 6 point mounting; Max load weight: 60 kg (132 lb)

ACCESSORY:ABUS 5650L, keyed-alike with Bosch battery
