LAPIERRE CROSSHILL 3.0 ティアグラ完成車 2023年モデルの仕様

Size: XS(42),S(46),M(50),L(55)

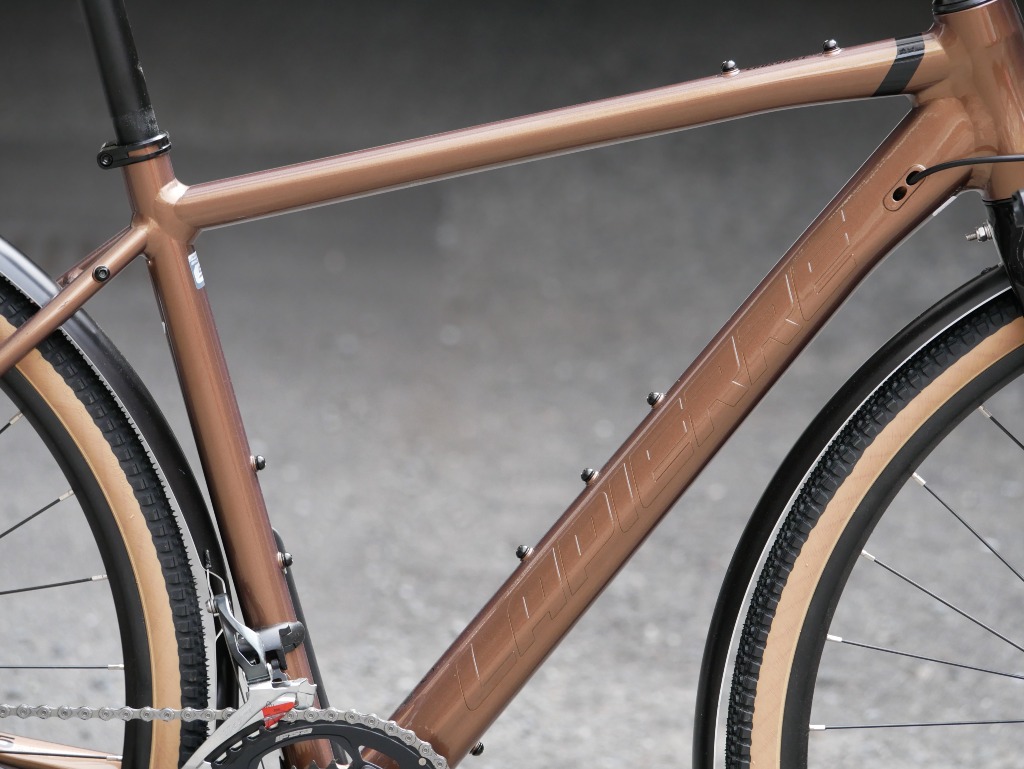

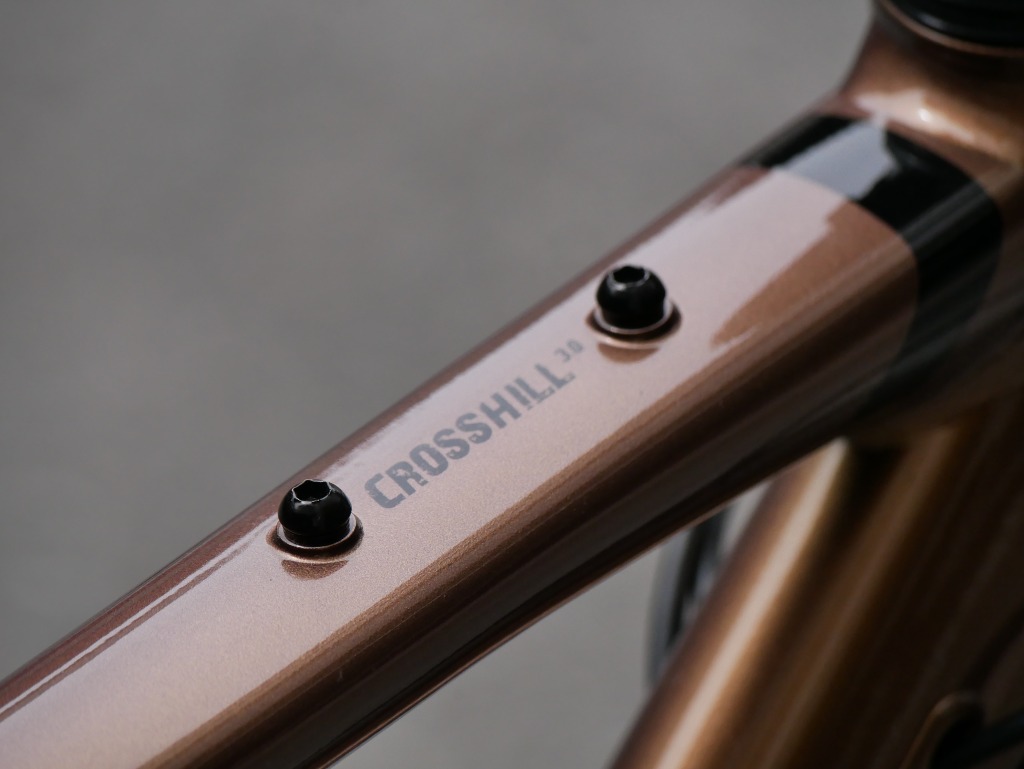

Frame: Crosshill gravel Supreme 4 Alloy Internal Routing

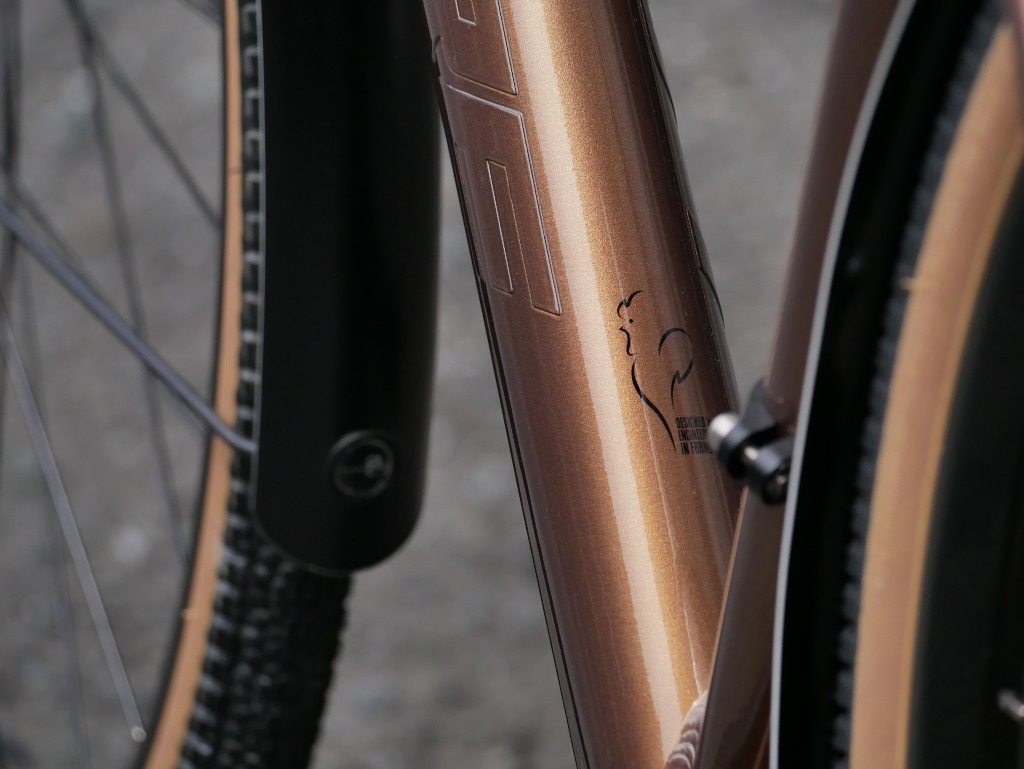

Fork: Lapierre carbon blades, alloy steerer, 12mm thru axle

Rear Derailleur: Shimano Tiagra RD-R4700 GS 10s

Front Derailleur: Shimano Tiagra FD-R4700

Crankset: FSA Omega Adventure MegaExo 46-30T, 170mm (XS/S), 172.5mm (M), 175mm (L)

Bottom Bracket: FSA Road MegaExo

Cassette: Sunrace CSMS0 11-34T 10s

Chain: KMC X10 silver/grey 1/2”x11/128” with CL566R link

Brakes: Shimano Tiagra hydraulic brakes fl at mount

Discs: Shimano SM-RT30 160mm front/rear Center Lock

Shifters / Brake levers: Shimano Tiagra ST-4720 2x10s

Headset: FSA Orbit NO.57B semi-integrated

Handlebar: Lapierre alloy gravel bar, Width: 420mm (XS/S), 440mm (M), 460mm (L), Flare: 16°

Grips: Lapierre elastomer tape black, shock proof, 3mm thick

Stem: Lapierre alloy, 6°, ?: 31.8mm, L: 90mm (XS/S), 100mm (M), 110mm (L)

Seatpost: Lapierre alloy, ?: 27.2mm, L: 350mm, O/S:12mm

Saddle: Selle Royal Vivo co-branded saddle

Hub: Lapierre, Center Lock 32H 12mm E-thru axle

Rims: WTB ST i23 TCS 2.0 32H 700c 21-622

Tyres: WTB Riddler 700x37c, Tan wall, Wire bead

Pedals: Steel cage NW-91K
